| COATING | PPGI | PPGL |
| Al-Zinc Coating (gsm) | Z-80 | AZ-70- 150 |
| Top Coating μ | 15 | 20 |
| Back Coating μ | 6 | 6 |
Product Specifications
| Coil Form | PPGI/PPGL |
| Thickness (mm) | 0.15 – 1.2 |
| Width (mm) | 900 – 1450 |
| Coil Weight (mt) | 2-10 (4 mt with guard film) |
| Substrate | Al-Zinc Alloy Steel/ Galvanized |
| Al-Zinc Alloy Steel (gsm) | AZ -70 – 150 |
| Zinc (gsm) | Z- 80 |
| Hardness | 350 mpa – 550 mpa |
| Guard Film | 35μ |
| Standards | ISO 9001 : 2015 Certified |

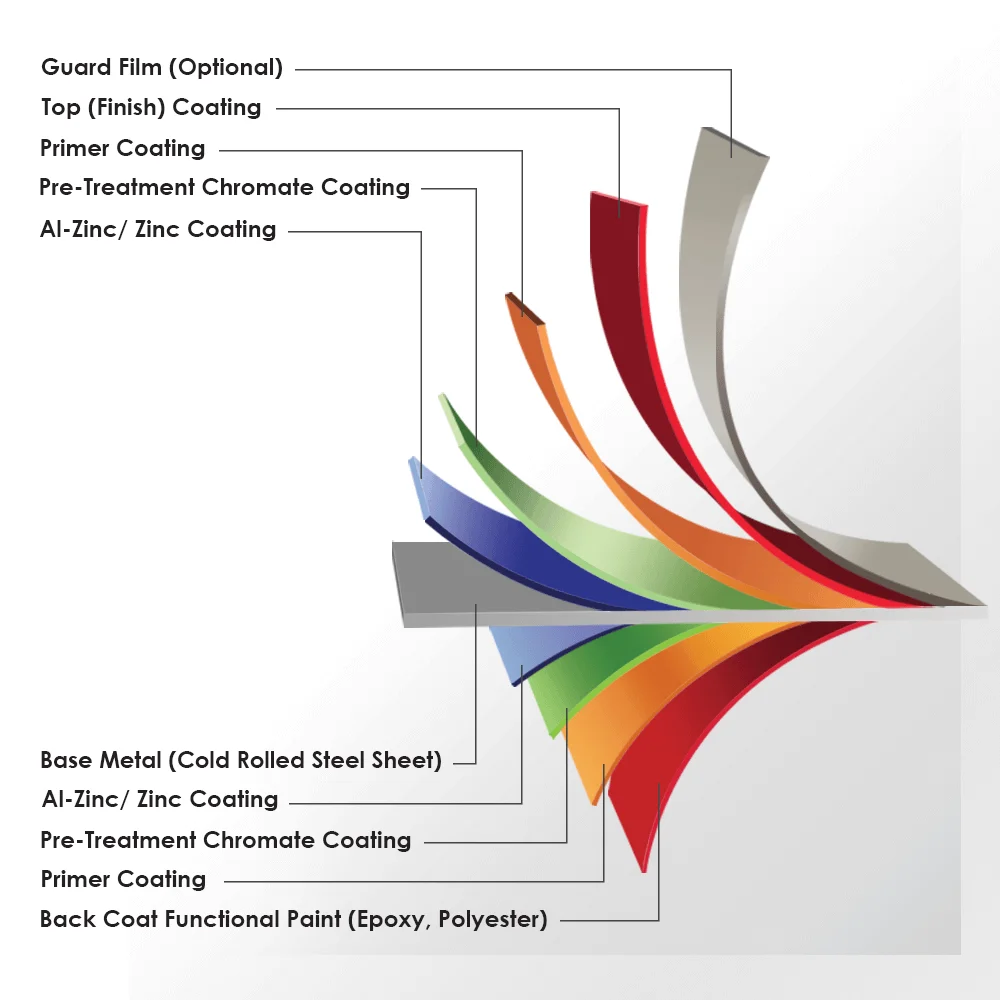

Paint Coating
We At M.S Industries have time and again proved their superiority over competitors by giving the roofs a longer life. It’s 120 GSM zinc coating gives a better look as well as a longer life to the roofs. It’s top and bottom coat using advanced technology helps the colour not to peel off during weather changes.

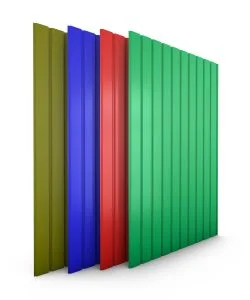

Profile Design
Major Application Areas
Factory Shades

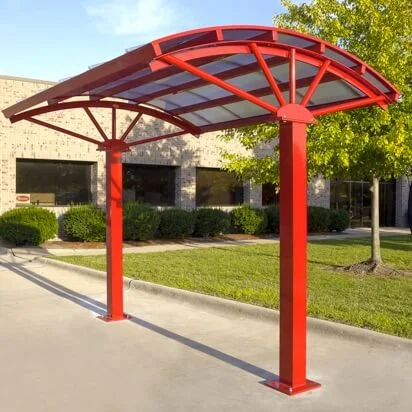

Bus Stand Shades

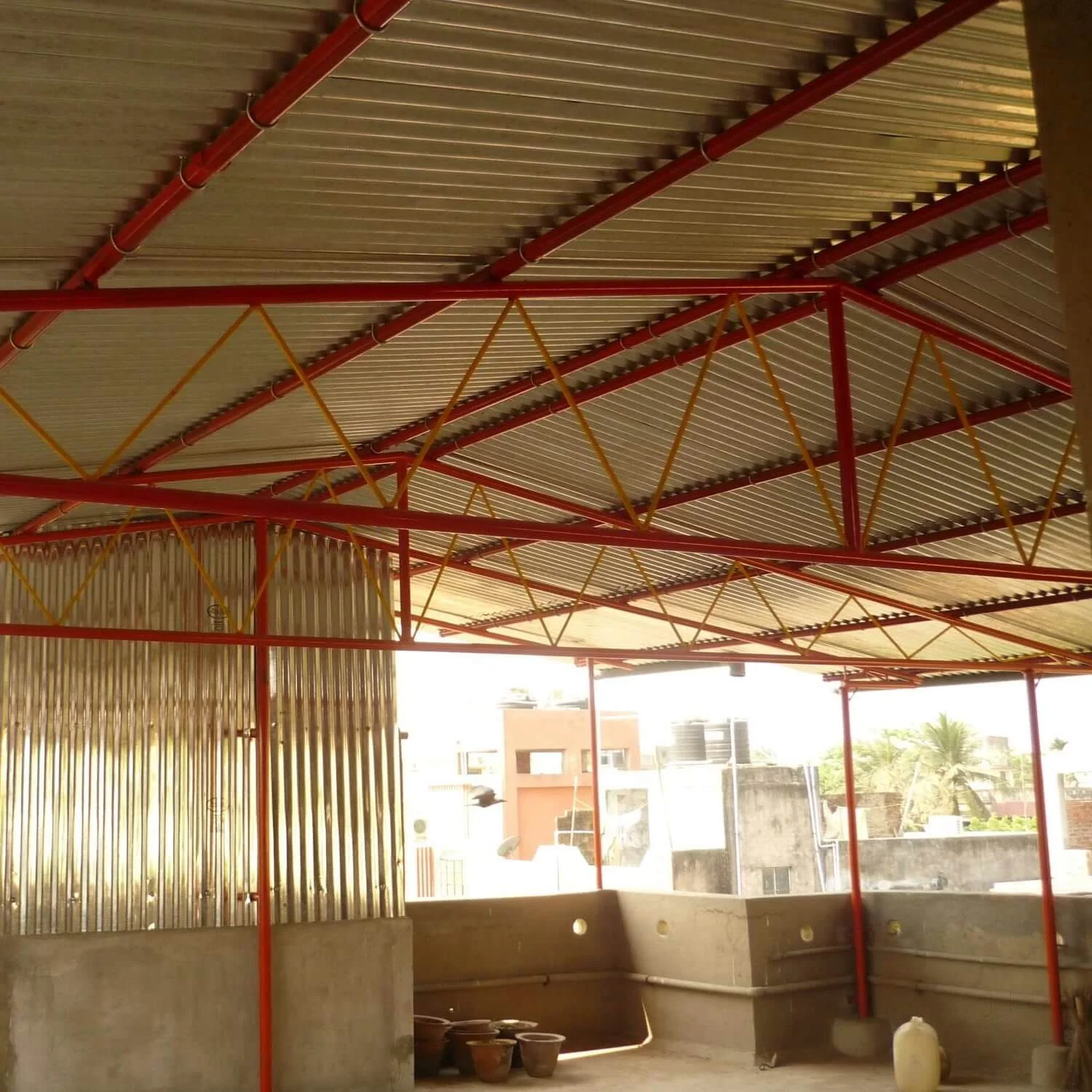

False Ceiling
False Ceiling

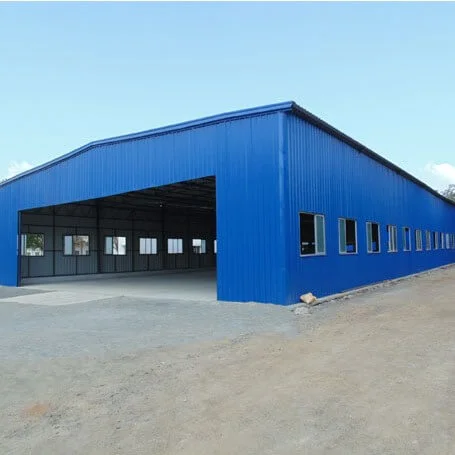

Warehouses & Cold Storages
Warehouses & Cold Storages

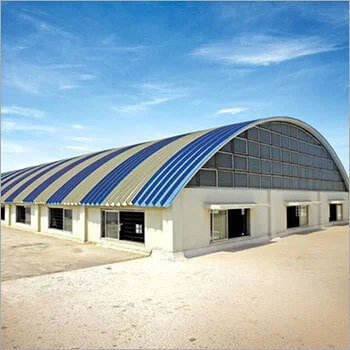

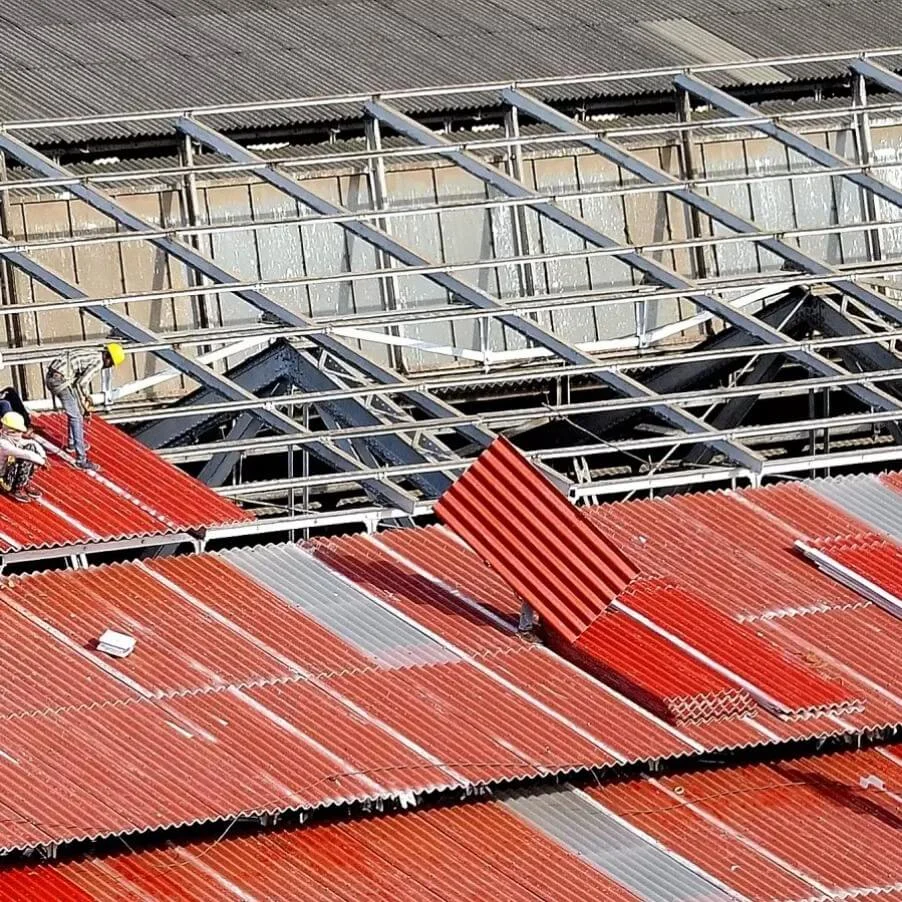

Industrial Roofing & Cladding

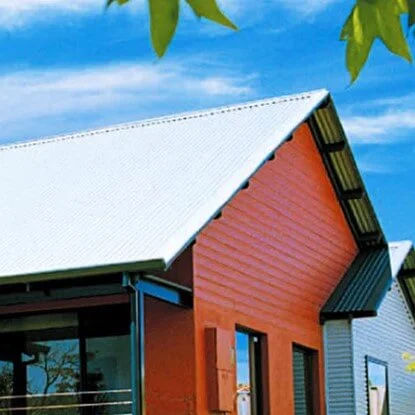

Residential Roofing & Cladding
Types of Accessories
Gutter
Our box gutters are usually rectangular in shape. These flashings collect rainwater and allow it to flow out of your building. Water is drained via a Down Pipe and Nozzle from the Gutter.

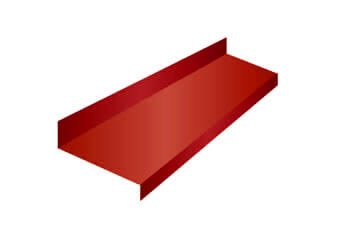

Apron Flashing
This flashing is used at the juncture where your sloped roof meets a chimney, vertical wall or a steeper sloped roof.

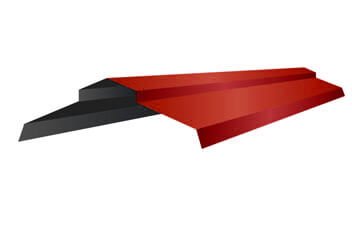

Ridge
Ridging covers the gap between two sheets in a roof’s ridgeline. A roof “ridge” is the uppermost peak where opposing planes meet.

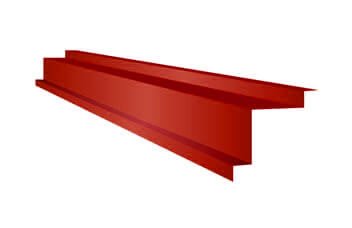

Corner Trim
Used at the end of a run of a sheet to trim and seal off the edge of the roof.

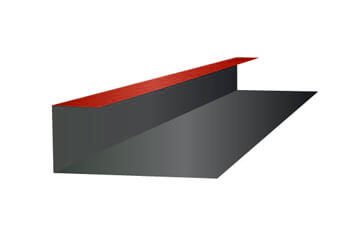

L Flashing
Also referred to as “step flashing”. Installed where your roof and sidewall meet to prevent water penetration.

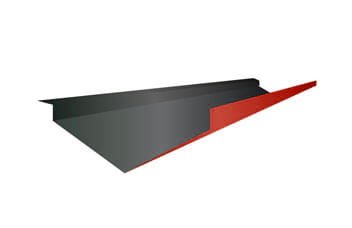

Valley Gutter
Used at the internal angle of intersection of two roofing sheets or at the slope of the roof and a wall to prevent leakage.

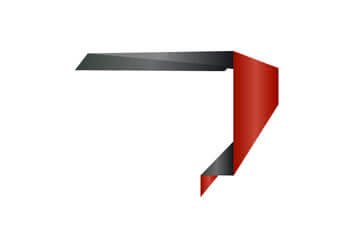

Barge Cap
Barge capping usually refers to flashings that secure the ends of your roof and walls. This is done a waterproofing deterrent.

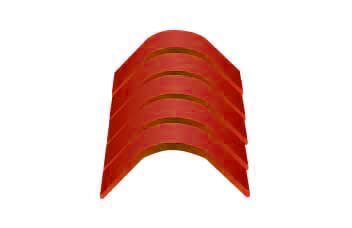

Crimp Material
Crimping is the process of making a curved profile sheet. It adds to a roof’s aesthetic. Our highly qualified team uses the latest technology to do full or partial crimping depending on your requirements. Crimp accessories are also available.
